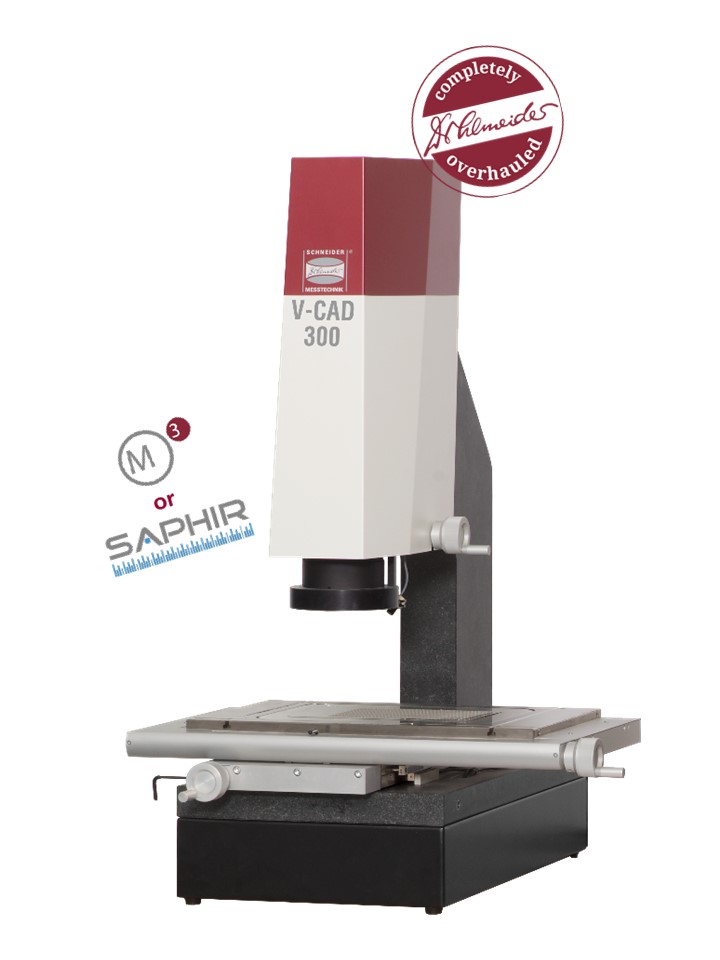

2D optical measuring device V-CAD 300 SAPHIR manual

Ref.: 3066

Description 2D optical measuring device V-CAD 300 SAPHIR manual

Measuring range

X-Y300 x 200 mm
Z200 mm
Field of view65 x 55 mm

Basic configuration

  • LED telecentric transmitted light
  • LED episcopic light
  • Telecentric 4-step motorised zoom
  • Manual stage in X/Y axis

Software/Hardware

  • Alternatively

    M3 measuring software:
    manual measurement of geometric elements with intuitive multi-touch application, measurement and evaluation in X/Y axis,
    tabular and grafical report

    SAPHIR 3D measurement and analysis software:
    lern programming, grafical view, reading-in of CAD-files, reports with set/real comparison
  • Touch screen panelPC / Windows 10

Special features

  • Reading-in of 2D DXF files
  • ­Quick adjustment

Electrical power supply

  • 220-240V / 50-60Hz

Guarantee

  • 6 months, directly from manufacturer incl. factory certificate

Configuration can be customized on request
