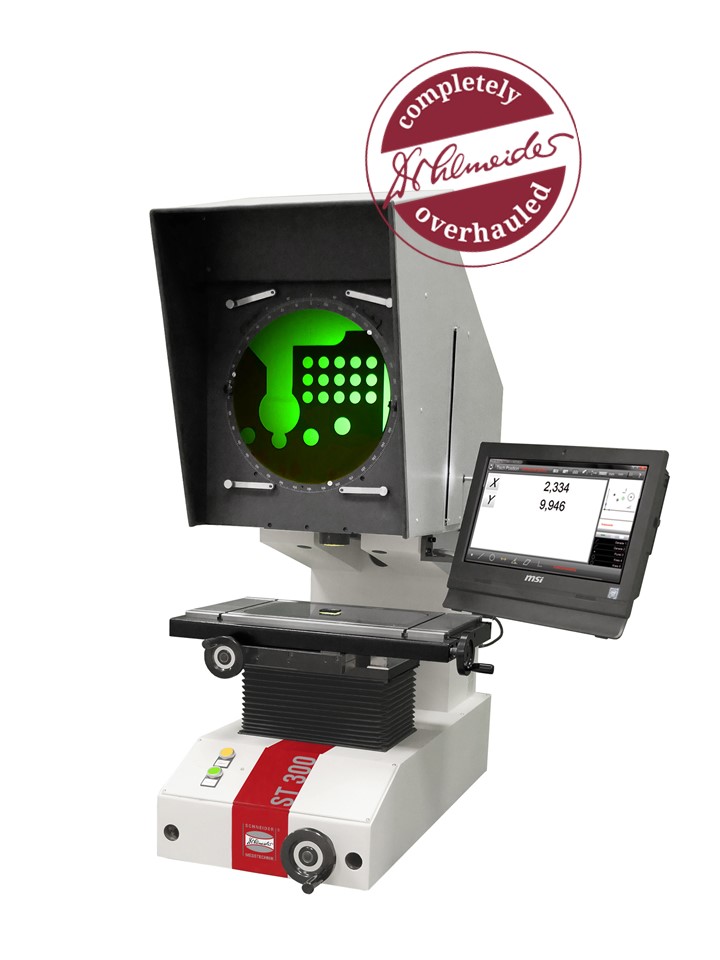

Horizontal measuring projector ST 300

Ref.: 3059

Description Horizonal masuring projector ST 300

Measuring range

X-Y250 x 125 mm

Basic configuration

  • Projection screen Ø 300 mm
  • Goniometer, rotatable through 360° with adjustable vernier 1“
  • Free working distance 130 mm
  • LED diascopic light
  • 10x and 20x magnifications
  • ST5 measuring stage with x and Y adjustment, runs on high precision needle bearings, incl. scales with analogue output
  • Integrated edge sensor
  • Max. workpiece weight 20 kg

Software/Hardware

  • M2 measuring software: quick selection, measurement and evaluation of elements in X/Y-axis, tabular and graphical report
  • All-in Touch-screen-panel PC

Special features

  • High und right-sided image
  • Magnification lens 50x
  • Episcopic light, 24V 150W halogen lamps
  • 3-lens slider turret

Electrical power supply

  • 220-240V / 50-60Hz

Guarantee

  • 6 months, directly from manufacturer incl. factory certificate

Configuration can be customized on request
