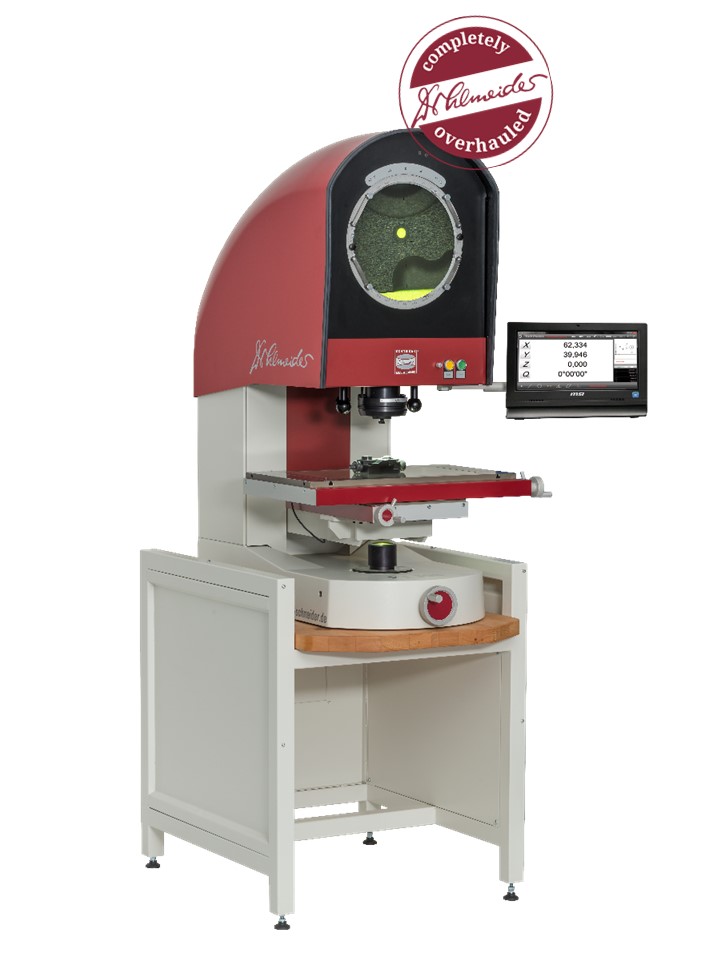

Description Vertical profile projector PV 300
Measuring range
| X-Y | 400 x 200 mm |
Basic configuration
- Projection screen Ø 300 mm
- Rotatable through 360°
- Adjustable vernier 1“
- Free working distance 130 mm
- LED transmitted light
- Holder for several lenses
- Magnification lenses 10x, 20x
- Measuring stage with adjustment in X/Y axis, needle bearing guided, quick adjustment, scales with analogue output
- Max. workpiece weight 20 kg
Software/Hardware
- M2 measuring software: quick selection, measurement and evaluation of elements in X/Y axis, tabular and graphical report
- Touch screen panel PC / Windows 10
Special features
- LED episcopic light for 10x/20x
- Workstation
Electrical power supply
- 220-240V / 50-60Hz
Guarantee
- 6 months, directly from manufacturer incl. factory certificate
Configuration can be customized on request
